Safety Showers

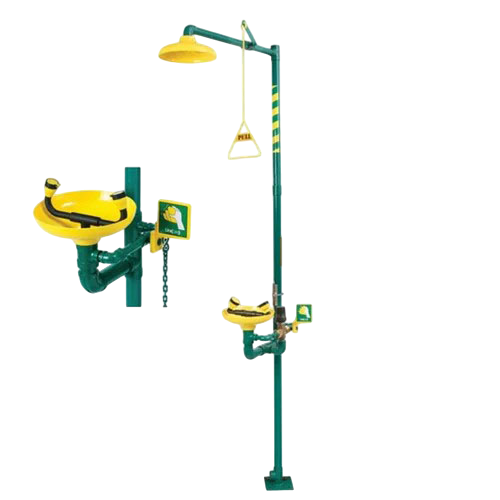

Eye & Face Wash Shower
Eye / Face Wash and Shower Operate Simultaneously or Eye / Face Wash Independently,by Walk-On Platform
Eye / Face Wash and Shower Operate Independently by PushLever and Pull rod
Eye & Face Wash Fountain
Eye / face wash – push lever operated
Eye / face wash and shower operate simultaneouldy by walk-on platform

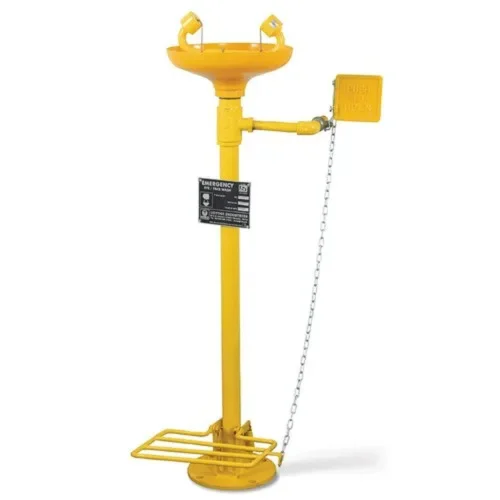

Hand Mounted Eye Wash Shower
- Eye Wash operated by hand.
- Material of construction
Pipe: GI heavy grade confirming to IS: 1239
Bowl for eyewash: Highly visible yellow anti corrosive plastic
Eye wash nozzles: Highly visible Black anti corrosive plastic (Automiser).
Push Plate : MS
Eye & Fach Wash Shower
Eye / Face Wash – Foot Pedal Operated
Eye / Face Wash and Shower Operate Independently by PushLever and Pull rod
Activation:
Yellow Cycolac Push plate/ Foot pedal operated Stay-open Brass Ball Valve with Stainless Steel Ball and Spindle.
Portable Eye Wash Unit
Self-Contained Unit Provides 15 Minutes Of Decontamination Water Flow.34 Litters Capacity For Easier Transport. Small Compact Size With Carrying Handle Making It More Convenient For Portability And Transportation. Chemical Resistant High Density Polyethylene Material. Large Filling Cap For Easy Filling, Cleaning And Inspection. The Eye Wash Is Activated By Simply Pulling The Retractable Tray. Retractable Tray Protects Against Air Borne Contaminants. Pinch Valve Ensures Positive Flow Within One Second Of Activation.
High Visibility Colour Provide Quicker Identification For The Victim In Distress. Mounted On Bracket Supplied That Easily Bolts To Wall.
Applications :-
- Chemical and Pharmaceutical Works Sites.
- Fire & Emergency Teams.
- Drivers Carrying Dangerous Substances.
- Remote Places in Mining. Agriculture and Construction Sites.
- Colour :-Orange With Blue Colour Tray.
IS : 10592 Approved.
Lab Eye Wash Unit
- Lab Eye Wash Unit is a wall mounted, compact unit specifically for laboratories. This is an eye wash unit operated with a push valve and is made of powder coated GI Pipes.
- ABS Bowls, ABS Atomiser Unit with Pop Off Covers,
- GI Fittings, Aluminium Casted Push Handle,
- SS Ball Valve of ½” Die, Drainage Pipe provided.
- Along with Aluminium Casted Stand as shown in photo.
IS: 10592 Approved.
Lab Eye Wash Unit
- Lab Eye Wash Unit is a wall mounted, compact unit specifically for laboratories. This is an eye wash unit operated with a push valve and is made of SS material.
- SS Bowls, SS Atomiser Unit, SS Fittings, SS Push Handle,
- SS Ball Valve of ½” Die, Drainage Pipe provided. Along with Aluminium Casted Stand as shown in photo.
IS: 10592 Approved.

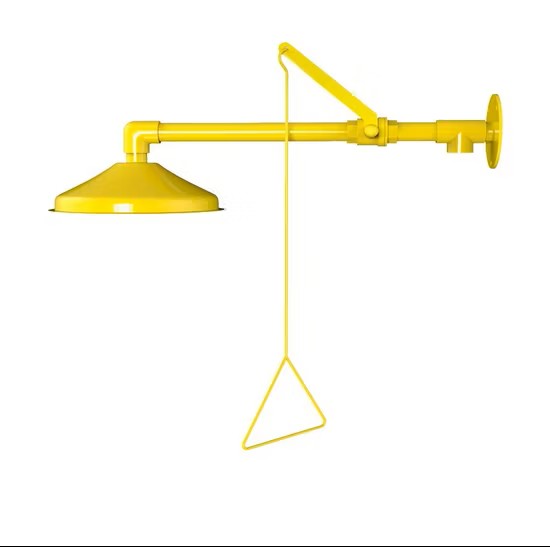

Wall Mounted Shower Head
The wall mounted shower head are manufactured of yellow colour ABS plastic which makes it resistant from corrosion. Its compact form makes it possible to fix it in any unit within the industry and aims at providing immediate protection. These industrial safety showers are resistant to high impacts which makes it a long lasting product design.
Specifications:
Material of construction:
- Self-closing valve: Gun metal (GM)
- Shower head: Highly visible, yellow coloured anti-corrosive plastic
- This portable shower head is fitted with a pull chain for body wash from any corner of the wall

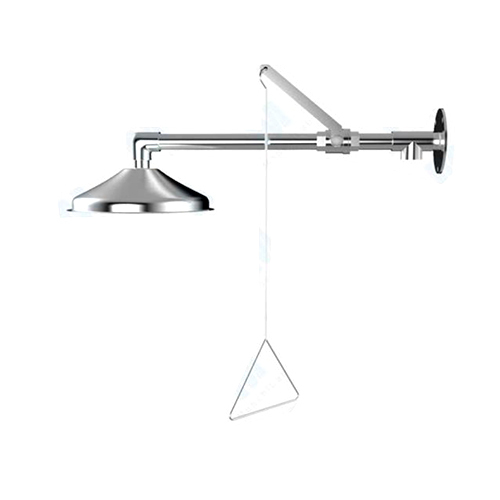

Wall Mounted Shower Head SS
The wall mounted shower head are manufactured of SS 304 & SS 316 which makes it resistant from corrosion. Its compact form makes it possible to fix it in any unit within the industry and aims at providing immediate protection. These industrial safety showers are resistant to high impacts which makes it a long lasting product design.
Specifications:
Material of construction:
- Self-closing valve: Stainless Steel (SS)
- Shower head: Highly visible, yellow coloured anti corrosive plastic
- This portable shower head is fitted with a pull chain for body wash from
G.I. “C” Class Heavy Duty Push Plate Operated Eyewash Unit
G.I. “C” Class heavy duty pipes and fittings made IS: 10592 Marked and Approved Push Plate operated Eyewash Unit.
Features:
- Full Eyewash Epoxy Powder Coated
- Corrosion resistant cycolac material made yellow colour eyewash bowls provided.
- Atomiser unit with imported nylon filter with flow compensator and pop off dust covers.
- Large aluminium push handle for easy operation
- SS Ball Valves of ½” Dia Provided
NOTE: – EYE WASH COLOR IS FULL GREY OR FULL YELLOW AVAILABLE ONLY.

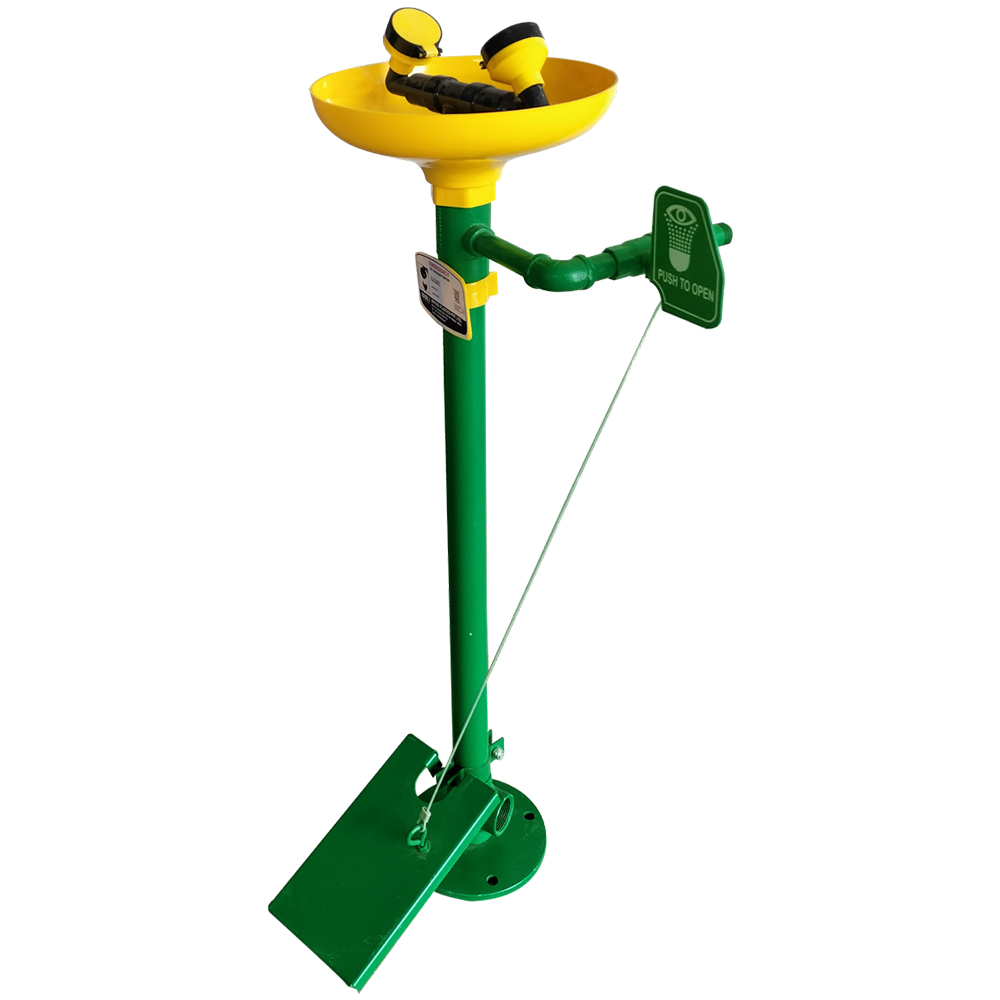

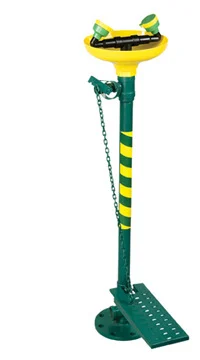

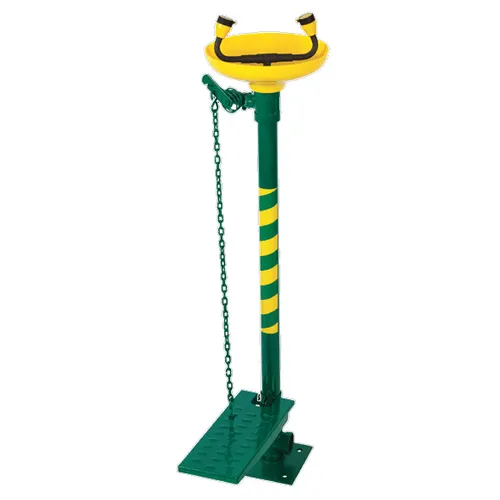

G.I. “C” Class Heavy Duty Foot Paddle Operated Eyewash Unit
G.I. “C” Class heavy duty pipes and fittings made IS: 10592 Marked and Approved Foot Paddle operated Eyewash Unit.
Features:
- Full Eyewash Epoxy Powder Coated
- Corrosion resistant cycolac material made yellow colour eyewash bowls provided.
- Atomiser unit with imported nylon filter with flow compensator and pop off dust covers.
- Foot Paddle Provided.
- SS Ball Valves of ½” Dia Provided
NOTE: – EYE WASH COLOR IS FULL GREY OR FULL YELLOW AVAILABLE ONLY.
Safety Services Make Push Handle Operated Eye / Face Wash Unit
SS 304 pipes and Sch. 40 investment casting fittings made push handle operated eyewash unit.
- SS Receptor Bowls
- SS Atomiser Unit
- SS Ball Valves of ½” Dia
- SS Push Handle
IS: 10592 Marked and Approved

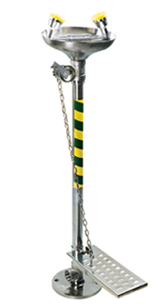

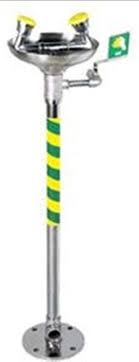

Foot Paddle Operated Eye / Face Wash Unit
Model: SS SSEF
SS 304 pipes and Sch. 40 investment casting fittings made foot paddle operated eyewash unit.
- SS Receptor Bowls
- SS Atomiser Unit
- SS Ball Valves of ½” Dia
- SS Foot Paddle
IS: 10592 Marked and Approved.
Push Handle or Paddle Operated Eye / Face Wash Unit
SS 304 pipes and Sch. 40 investment casting fittings made push handle or paddle operated eyewash unit.
- SS Receptor Bowls
- SS Atomiser Unit
- SS Ball Valves of ½” Dia
- SS Push Handle
- SS Rod
- SS Push Plate (Paddle)
IS: 10592 Marked and Approved
Safety Shower Hand Operated
G.I. “C” Class heavy duty pipes and fittings made IS: 10592 Marked and Approved Push Plate operated Eyewash Unit and Pull Push Rod Operated Body Shower.
Features:
- Full Eyewash Epoxy Powder Coated.
- Corrosion resistant cycolac material made fluorescent colour eyewash bowls provided.
- Corrosion resistant cycolac material made shower head bowls of fluorescent colour having perforated holes in conical shape for easy and huge flow of water.
- Atomiser unit with imported nylon filter with flow compensator and pop off dust covers.
- Large but lightweight aluminium push handle for easy operation
- SS Ball Valves of 1” & ½” Dia Provided
- Pull Push Rod with enamelled Name Plate
- 1 ¼ Drain & Inlet.
- 5mm Thick Base Plate
NOTE: – SHOWER COLOR IS IN ONLY FULL YELLOW OR FULL GREY

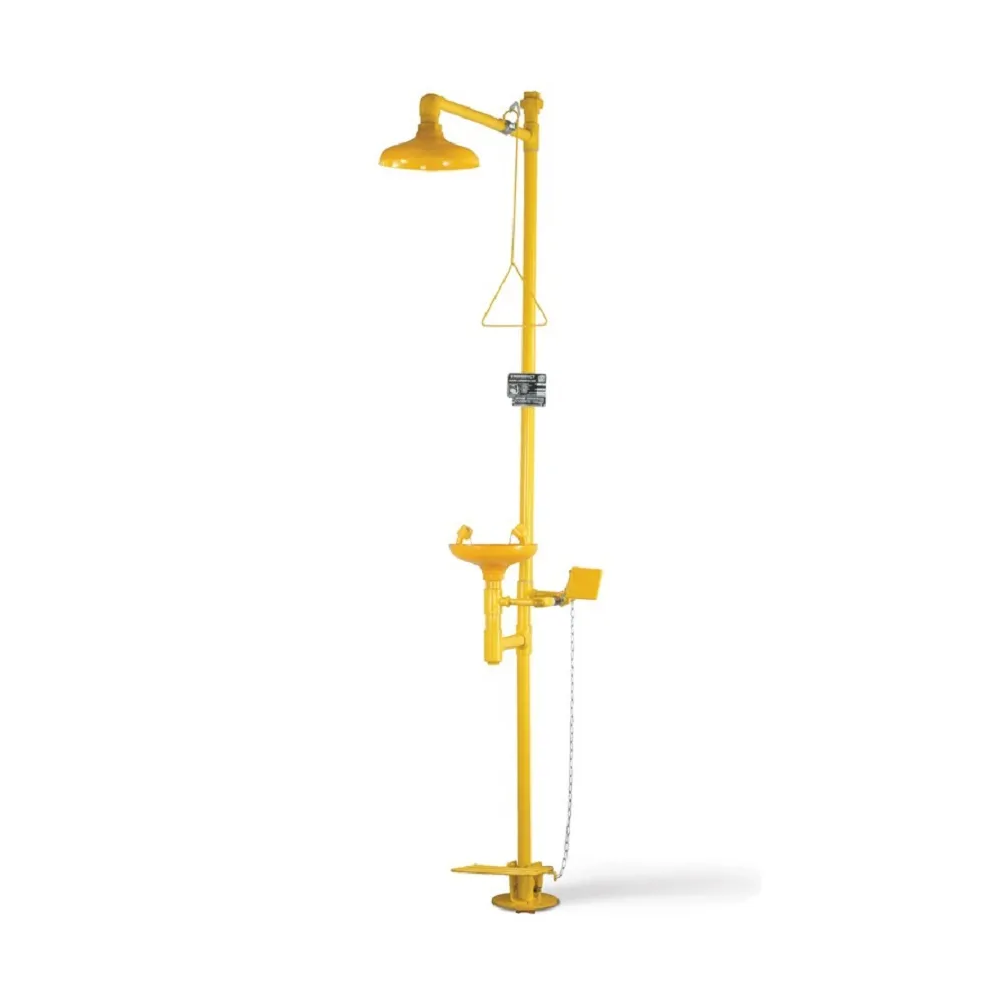

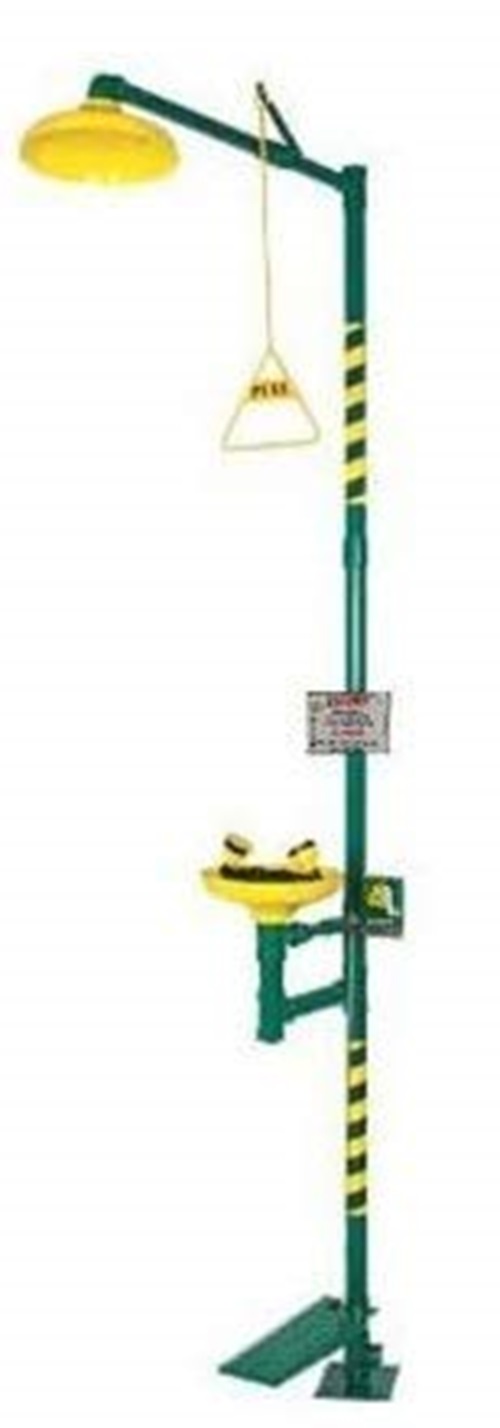

Safety Shower Foot Operated
G.I. “C” Class heavy duty pipes and fittings made IS: 10592 Marked and Approved Foot Paddle operated Eyewash Unit and Pull Push Rod Operated.
Features:
- Full Eyewash Epoxy Powder Coated
- Corrosion resistant cycolac material made fluorescent colour eyewash bowls provided.
- Corrosion resistant cycolac material made fluorescent colour shower head bowls having perforated holes in conical shape for huge and free flow of water provided.
- Atomiser unit with imported nylon filter with flow compensator and pop off dust covers.
- Foot Paddle Provided.
- SS Ball Valves of 1” & ½” Dia Provided.
- Pull & Push Rod with Printed Name Plate
Safety shower is only in grey or yellow colour

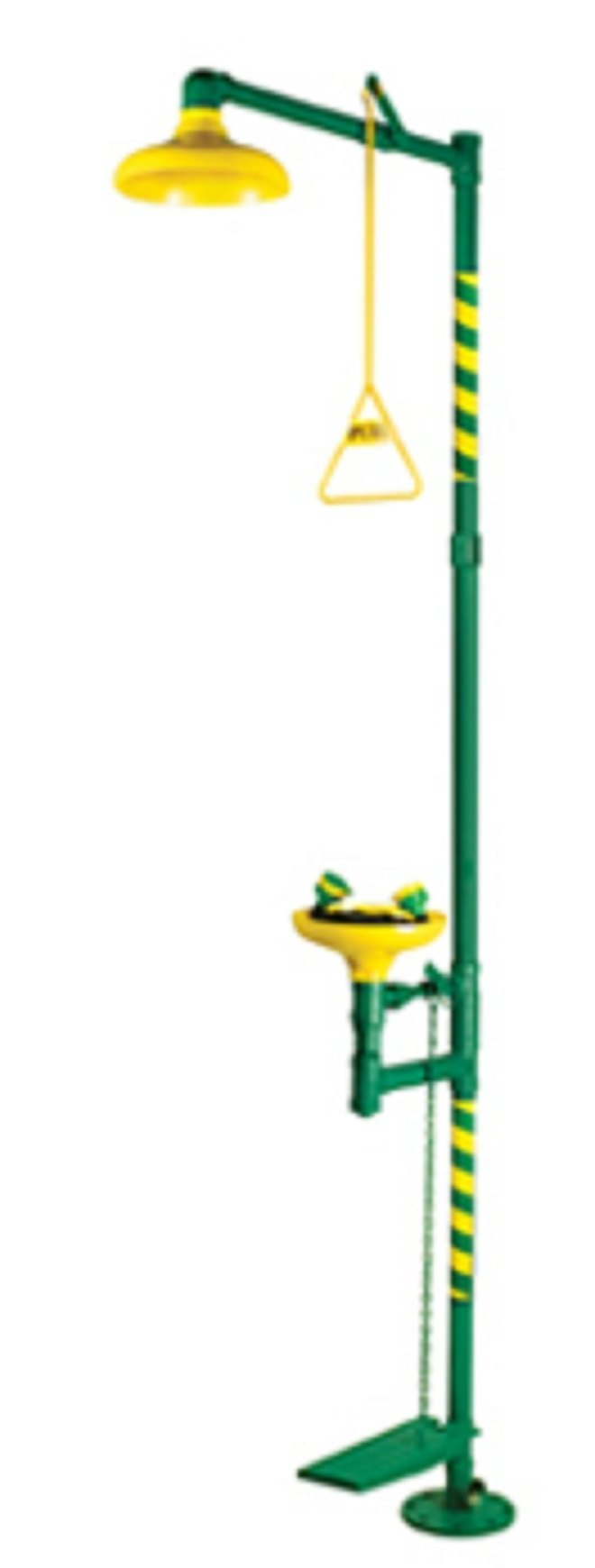

Safety Shower Foot Operated
G.I. “C” Class heavy duty pipes and fittings made IS: 10592 Marked and Approved Push Plate & Foot Paddle operated Eyewash Unit and Pull Push Rod Operated Body Shower.
Features:
- Full Eyewash Epoxy Powder Coated.
- Corrosion resistant cycolac material made fluorescent colour eyewash bowls provided.
- Corrosion resistant cycolac material made shower head bowls of fluorescent colour having perforated holes in conical shape for easy and huge flow of water.
- Atomiser unit with imported nylon filter with flow compensator and pop off dust covers.
- Large but lightweight aluminium push handle & foot plate with chain & rod for easy operation
- SS Ball Valves of 1” & ½” Dia Provided
- Pull Push Rod with enamelled Name Plate
- 1 ¼ Drain & Inlet.
- 5mm Thick Base Plate
NOTE: – SHOWER COLOR IS IN ONLY FULL YELLOW OR FULL GREY

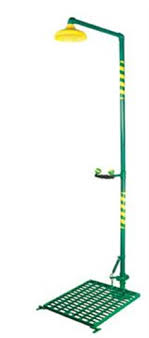

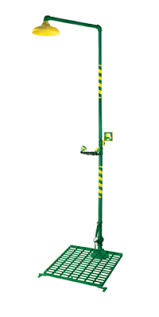

Safety Shower Unit Platform Operated Eye Wash Unit
G.I. “C” Class heavy duty pipes and fittings made IS: 10592 Marked and Approved Safety Shower Unit Platform Operated Eye Wash Unit.
Features:
- Full Shower Epoxy Powder Coated.
- Corrosion resistant cycolac material made shower head bowls of yellow colour having perforated holes in conical shape for easy and huge flow of water.
- Atomiser unit with imported nylon filter with flow compensator and pop off dust covers.
- SS Ball Valves of ½” Dia Provided
- 1 ¼ Inlet.
- 5mm Thick Base Plate
- Platform for operate eye wash and body wash easily.
NOTE: – SHOWER COLOR IS IN ONLY FULL YELLOW OR FULL GREY
Push Handle Operated Safety Shower Unit with Platform Operated Eye Wash Unit
G.I. “C” Class heavy duty pipes and fittings made IS: 10592 Marked and Approved Push Handle operated Safety Shower Unit and Platform Operated Eye Wash Unit.
Features:
- Full Shower Epoxy Powder Coated.
- Corrosion resistant cycolac material made shower head bowls of yellow colour having perforated holes in conical shape for easy and huge flow of water.
- Atomiser unit with imported nylon filter with flow compensator and pop off dust covers.
- Large but lightweight aluminium push handle for easy operation
- SS Ball Valves of ½” Dia Provided
- 1 ¼ Inlet.
- 5mm Thick Base Plate
- Platform for operate eye wash easily.
NOTE: – SHOWER COLOR IS IN ONLY FULL YELLOW OR FULL GREY

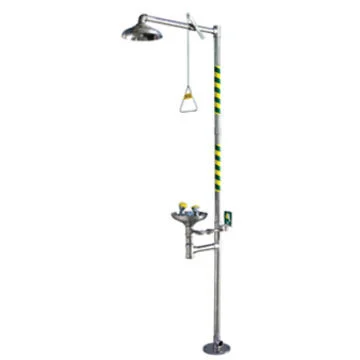

SS Safety Shower Hand Operated
Hand Lever Operated Eye / Face Wash Unit and Push Pull Rod Operated Body Shower Combination Unit.
SS 304 pipes and Sch. 40 investment casting fittings made hand lever operated eyewash unit and pull push rod operated body shower.
- SS Receptor Bowls
- SS Shower Head Bowl
- SS Atomizer Unit
- SS Ball Valves of 1” & ½” Dia
- SS Push and Pull Lever
- SS Hand Lever Operated
IS: 10592 Marked and Approved

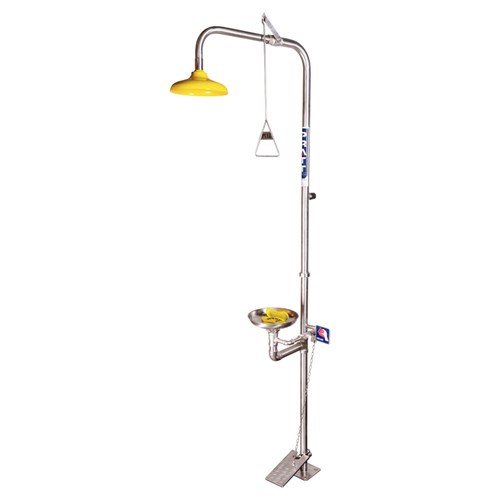

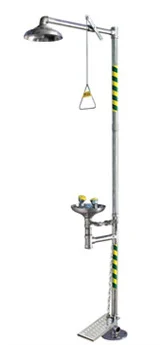

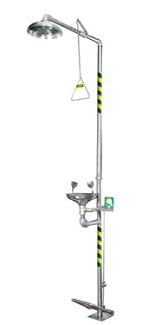

SS Safety Shower Foot Operated
Foot Paddle Operated Eye / Face Wash Unit and Push Pull Rod Operated Body Shower Combination Unit.
SS 304 pipes and Sch. 40 investment casting fittings made foot paddle operated eyewash unit and pull push rod operated body shower.
- SS Receptor Bowls
- SS Shower Head Bowl
- SS Atomizer Unit
- SS Ball Valves of 1” & ½” Dia
- SS Push and Pull Lever
- SS Foot Paddle Operated
IS: 10592 Marked and Approved
Hand Lever and Foot Paddle Operated Safety Shower Unit
Hand Lever and Foot Paddle Operated Eye / Face Wash Unit and Push Pull Rod Operated Body Shower Combination Unit.
SS 304 pipes and Sch. 40 investment casting fittings made hand lever and foot paddle operated eyewash unit and pull push rod operated body shower.
- SS Receptor Bowls
- SS Shower Head Bowl
- SS Atomizer Unit
- SS Ball Valves of 1” & ½” Dia
- SS Push and Pull Lever
- SS Hand Lever Operated
- SS Foot Paddle Operated
IS: 10592 Marked and Approved
Body Spray
Body Spray is made for high flow body spray equipment attached to a flexible PVC hose at one end and water inlet at the other. It can be attached to any shower with an outlet provision.
Wall Mounted Eye Wash With Dust Cover
Wall mounted eye/face wash features 12″ stainless steel bowl with anodized aluminium wall bracket.
Never lose dust covers again! Spray head assembly has two fine spray outlet heads with “flip-top” dust covers mounted on chrome plated brass supply arms. Eye/face wash is activated by a 1/2″ IPS chrome plated brass stay-open ball valve with cast aluminium flag handle. Activating eye/face wash valve also opens stainless steel bowl cover, which covers the entire bowl while not in use. Bowl acts like a sink to drain water away. Unit meets IS:10592 standard as primary eye/face wash. Fully factory assembled and water tested. Complete with ANSI compliant identification sign.
Application:
Eye/face wash for wall mounting. Unit has stainless steel cover to protect bowl from dust, dirt and other contaminants. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
- Spray Head Assembly:
Two FS-Plus spray heads. Each head has an internal flow control and filter to remove impurities from the water flow. - Valve:
1/2″ IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. - Bowl:
11 1/2″ stainless steel bowl with cover. Cover is raised automatically when flag handle is activated. Cover closes when handle is returned to closed position. - Mounting:
Heavy duty cast aluminium wall bracket with powder coated finish. - Supply:
1/2″ NPT female inlet. - Waste:
1 1/4″ NPT female outlet. - Sign:
IS-10592-compliant identification sign.

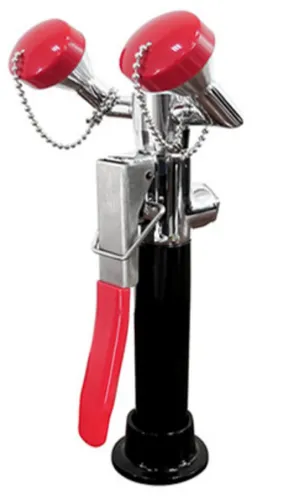

Deck Mounted Eye Wash Unit
Main Body:
Chrome plated forged brass
Valve:
Brass squeeze valve activated by stainless steel 304 lever handle.
Valve has replaceable stainless steel 304 seat for exceptional durability.
Locking clip engages when handle is depressed to provide hands-free operation.
Valve stays open until locking clip is released.
Spray:
2 spray heads with dust cover
Hose:
1.5 meter long
Water Working Pressure:
0.2 MPA – 0.8 MPA
Supply:
½’’ IPS/NPT
Original Water:
Clean water or leached water

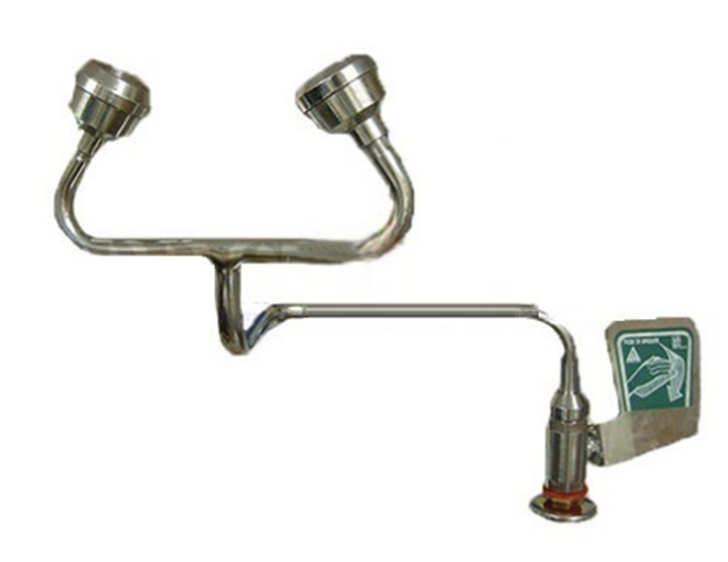

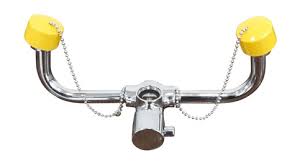

Faucet Mounted Eye Washer
The faucet mounted eye washer can convert any faucet into an emergency eyewash station without interfering with normal faucet operation. It can be installed at any sink.
It is easy to install and quickly located and activated.
Furnished with three adaptors for installing on most commonly used faucets, including laboratory faucets.
The main body is made of chrome plated forged brass.

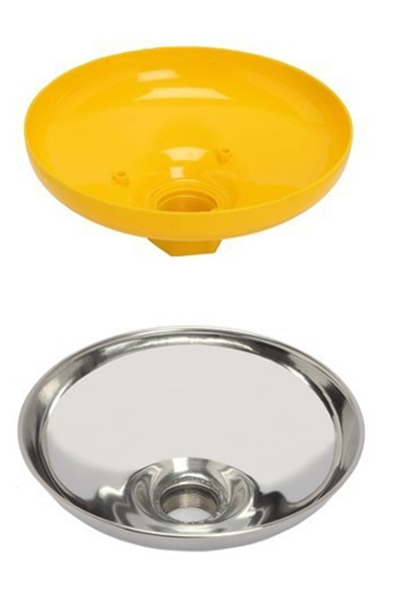

Receptor Bowl For Eye Wash Unit
Receptor Bowl Is Made of either SS or polymer and is connected to the drain pipe.

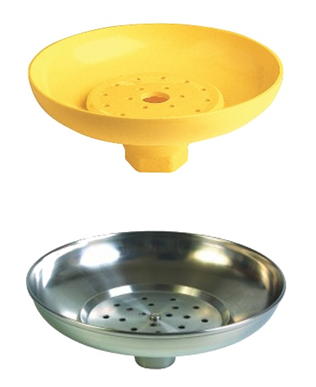

Shower Head
Shower Head bowl is made of either SS or Polymer and has an inbuilt flow compensator.

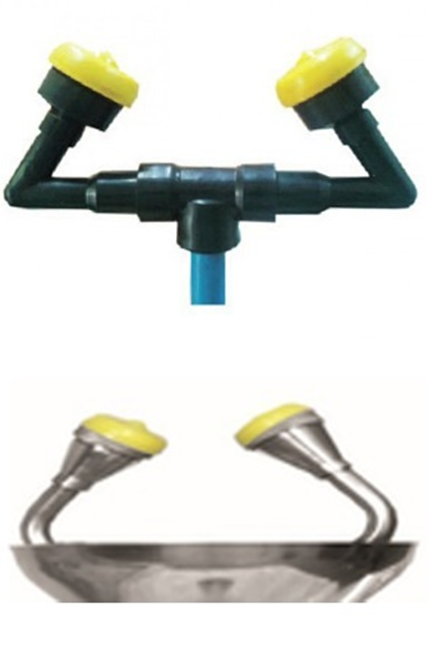

Sprinkler (Atomiser) Set For Eyewash Unit.
Sprinkler (Atomiser) Set is made of engineering polymer and has two sets of eye sprinklers with dust protection lid and inbuilt flow compensator.

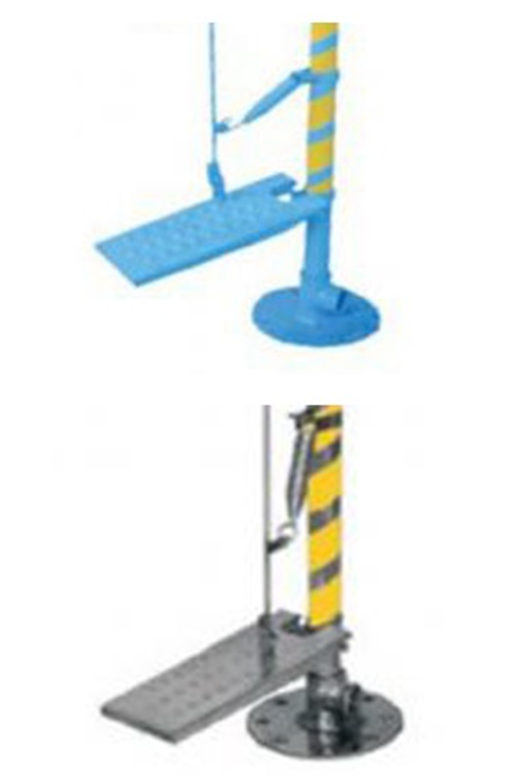

Footplate For Eyewash
Universal Valve Lockout devise + One SHORT Arm-made of Multiple Composition ABS+Metal Part + Spring + PU With Lower Bottom Jaw Grip 15MM

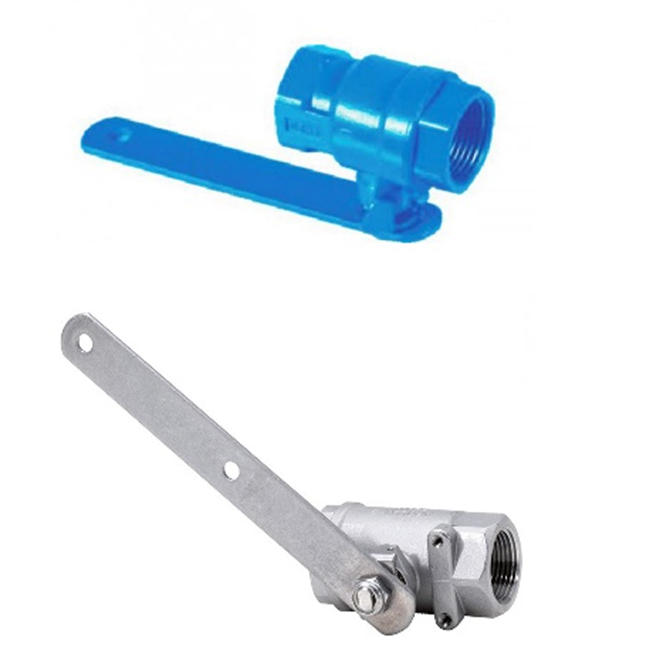

Spare Ball Valve
Spare Valve Ball Valve Is Used For Eye Wash & Shower Activation.
- Size As Follows :-
- GI :- ½’’ & 1’’
- SS :- ½’’ & 1’’
Push Handle
Push Handle is made of metal/GI or SS and is connected to hand operated valve/Eye wash.

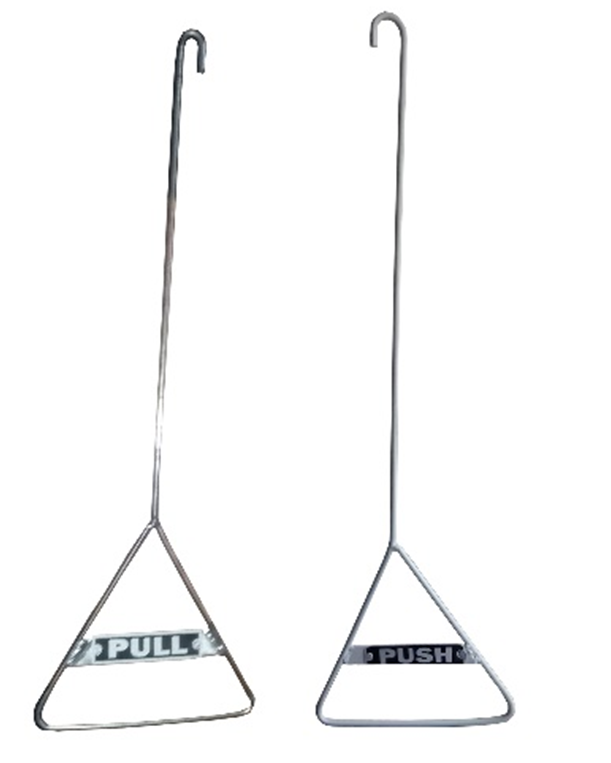

Pull Lever/Pull-Push Handle
Pull Lever/Pull-Push Handle Is Made of metal/GI Or SS and is connected to the shower operating valve.
