Lockout

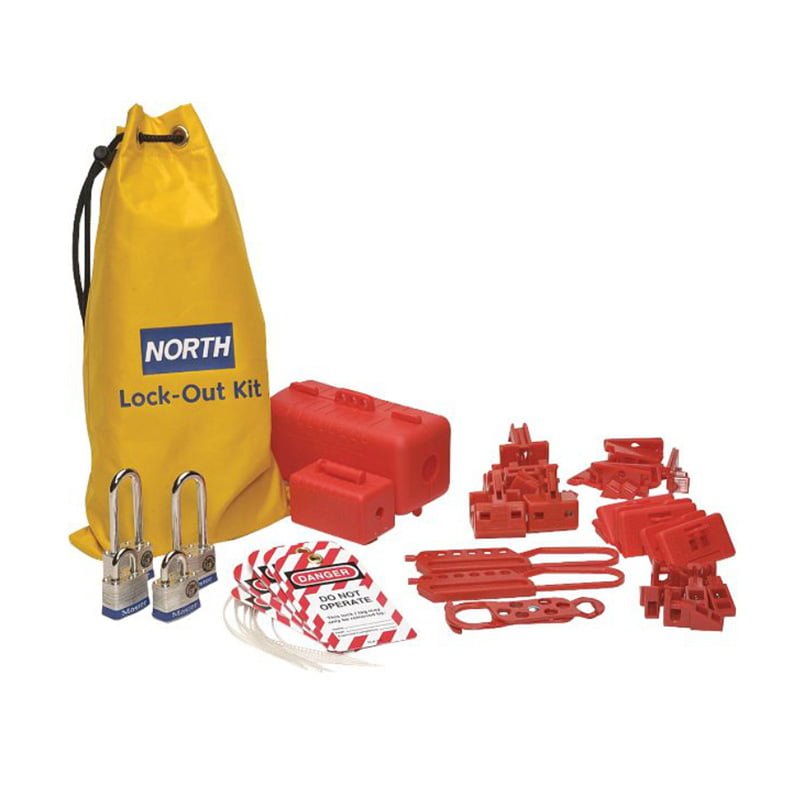

LK108FE Electrical Lockout / Tagout Kit
This kit provides all items to properly secure electrical machinery and equipment, from causing serious injury while being serviced. All items can be easily carried in lightweight carrying bag
Kit Includes:
(1) Nylon carrying bag, (6) CB03, (6) CB01, (6) CB04, (6) ES01, (1) LP110, (1) LP550, (2) MS01, (1) 666RD, (2) #3D, (2) #1DLJ, (10) ELA290
These tags are sold in packs of 25 identical tags with necessary fasteners.

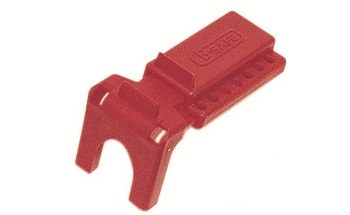

BS01 Safe Ball Valve Lockouts
Description :
- Made of strong “Polypropylene” plastic.
- Fully dielectric.
- Highly resistant to solvents and other chemical products.
- Highly resistant to cracking and abrasion.
- Resistant to extreme temperature changes
- 50O F (- 46O C) to 360O F (183O C).
BS04 Universal Lockout For Butterfly Valves
Description :
- Made of strong “Polypropylene” plastic.
- Fully dielectric.
- Highly resistant to solvents and other chemical products.
- Highly resistant to cracking and abrasion.
- Resistant to extreme temperature changes
- 50O F (- 46O C) to 360O F (183O C).
BS04 – B-Safe® Universal Butterfly Valve Lockout, 1 5/8 ” handle width.

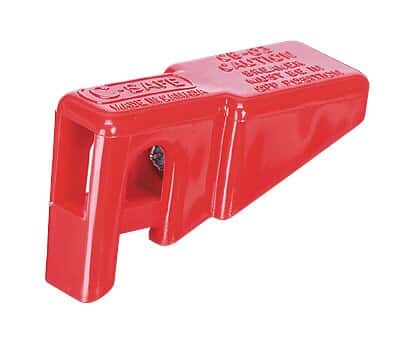

CB 03 Single Pole Circuit Breaker Lockouts
Description :
Constructed of rigid plastic, the new C-SAFE circuit breaker lockouts are now available for either single or circuit breaker lockout applications.
CB03 This model is our single breaker lockout for circuit breakers that do not have a recessed hole.
To install, the breaker must be in the “off ” position. Place the breaker over the toggle.
Insert your screwdriver (star type) into the hole, tighten the screws well. Insert your lock or tag and close. Make sure everything is tight.
This model will accommodate circuit breakers with an overall width of 9/16” (14mm). Remember, the breaker must be in the “off ” position before installing.
CB 04 Double Pole Circuit Breaker Lockouts
Description :
Constructed of rigid plastic, the new C-SAFE circuit breaker lockouts are now available for either double pole circuit breaker lockout applications.
CB04 Our double pole breaker lockout requires that there be two toggles connected together with a cross bar.
Pull the slider bar and place the breaker lockout over the breakers.
Push back the slider bar and put your lock on aligned holes.
This model will accommodate double or triple breakers .

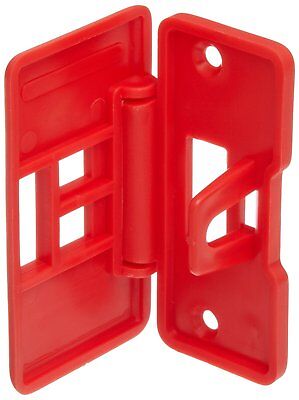

ES 01 E-SAFE "LOCK-A-SWITCH"
This easy to install device can be used with most mounted switches. It can be used to lock the switch in either the “on” or “off ” position. (Install using existing screws). Standard package: 6 devices.Remember, the breaker must be in the “off ” position before installing

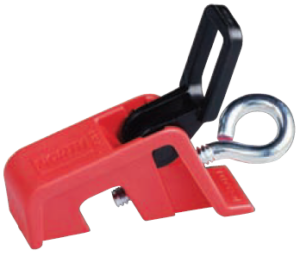

CBU01 Universal Circuit Breaker
C-Safe Universal circuit breaker lockout – Single or double pole, does not require any tool.
Ms86 Metal Lockout HASP
With 1” dia. jaw opening, 4 3/8” length, Single scissor type, Rubber dipped handle, Accommodates six padlocks, made of tempered steel, individually packed-72/box.
More than One Employee Can Lockout the Same Energy Source for Added Safety

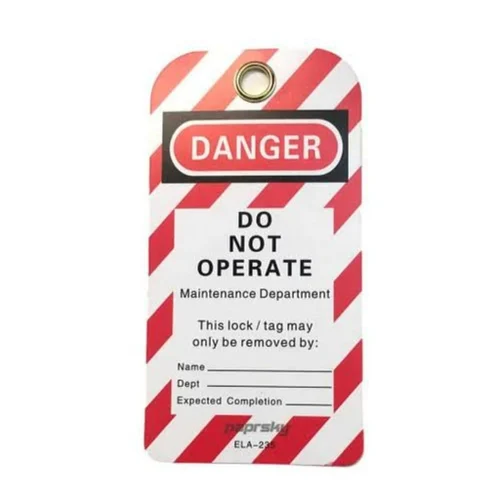

ELA235/3 - Lockout Tags Maintenance
Description :
All lockout tags are 3 x 5 3/4 in size and made of rugged stain and mildew resistant 20 mil. styrene. The textured surface allows you to write all important information such as names,
dates and expected completion time as well as any other remarks.
These tags are sold in packs of 25 identical tags with necessary fasteners.

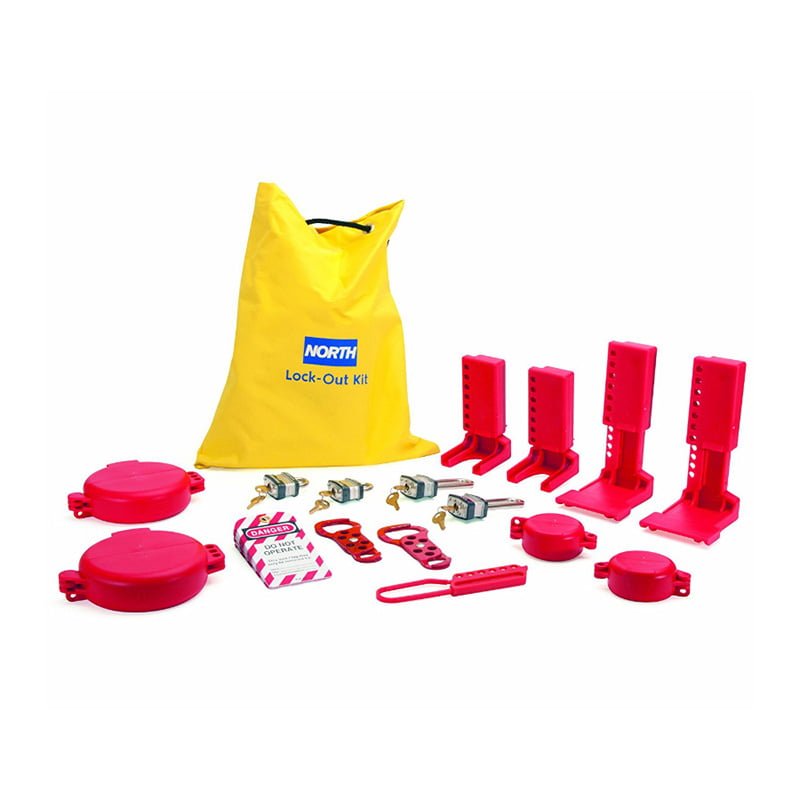

LK109FE Valve Lockout/Tagout Kit
North has the original B-Safe ball and V-Safe gate valve lockouts. These make lockout/tagout of valves an easy procedure with an easy to transport lockout / tagout kit.
Kit Contains :
(1) Nylon carrying bag, (2) VS02, (2) VS04, (2) BS01,(2) BS02, (1) MS01, (2) 666RD, (2) #3D,
(2) #1DLJ, (10) ELA290
